Product Portfolio

Meter designs we enable you to manufacture

iMezr designs; you manufacture. Every design is exclusive, BIS-certified and production-proven — your product, your brand, your factory.

01

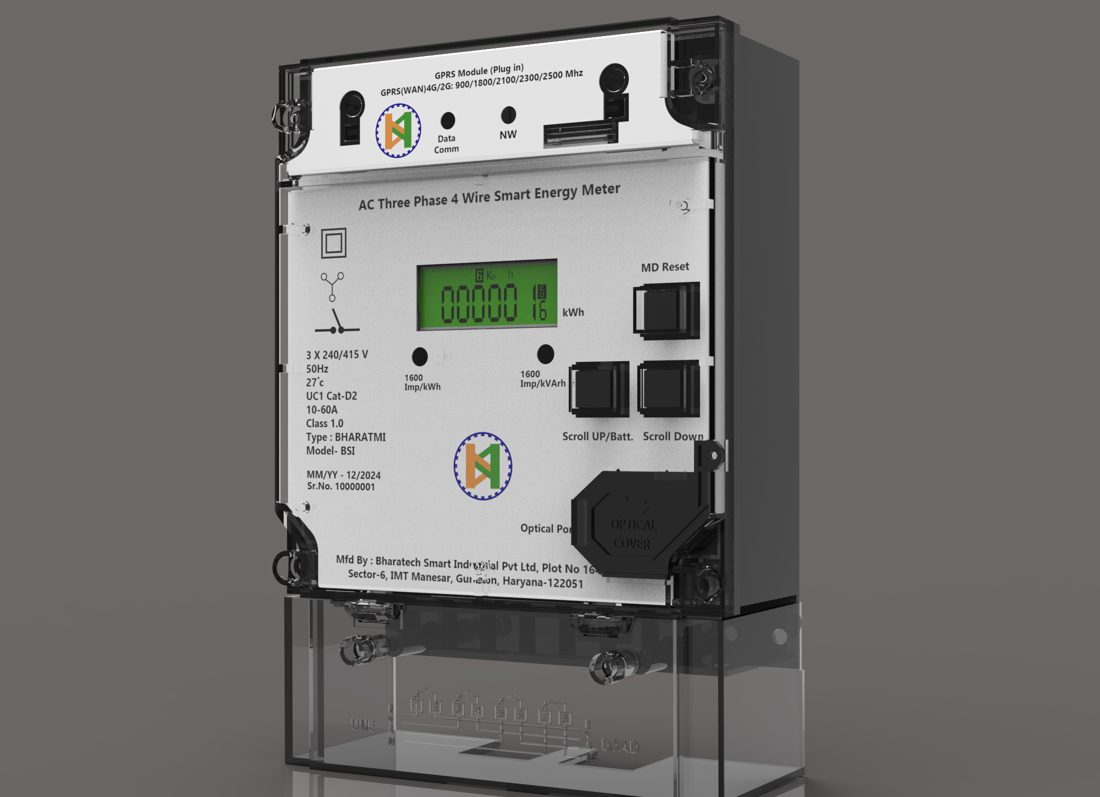

Three Phase Smart Energy Meter

IS:16444 Part 1  ·  BIS Certified  ·  4G / NB-IoT / RF Mesh

Three phase smart energy meter

Reference standards: IS 16444, IS 13779, IS 15959, IS 15884, CBIP 325, IEC 62052-11, IEC 62053-21/22, IEC 62056 (DLMS).

Ratings10-60A, 20-100A (Direct & CT-connected)
Communication4G/2G, NB-IoT, RF Mesh (plug-in NIC)
ProtocolDLMS/COSEM · Plug & Play · Self-register
SecurityAES-GCM-128 encryption + AES-128 Key Wrap
Tamper DetectionMagnet · AC/DC chopping · Connection tampers
Load ControlLatching relay >10,000 cycles · Remote switch
Metering ModesPre-paid & post-paid · TOU up to 8 rates
AMISelf-healing · Remote FW update · Auto-register
Accuracy ClassActive: Class 1 (Direct) / 0.5S (CT) · Reactive: Class 2 / Class 1
EnclosureUltrasonic welded · 35kV surge immune · IP54
Dimensions232 mm × 164 mm × 73.5 mm
02

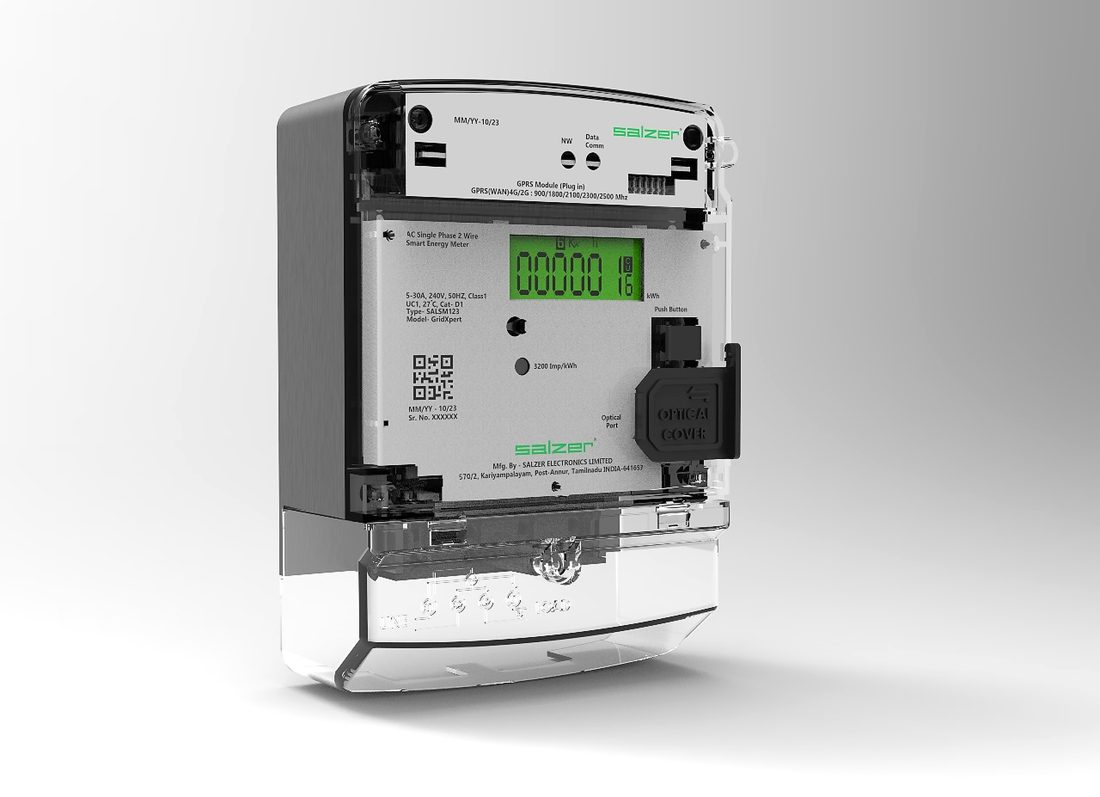

Single Phase Smart Energy Meter

IS:16444 Part 1  ·  BIS Certified  ·  4G / NB-IoT / RF Mesh

Single phase smart energy meter

Reference standards: IS 16444, IS 13779, IS 15959, IS 15884, CBIP 325, IEC 62052-11, IEC 62053-21, IEC 62056 (DLMS). Other current combinations available on request.

Ratings5(30)A, 5(40)A, 5(60)A, 10(60)A
Communication4G/2G, NB-IoT, RF Mesh (plug-in NIC)
ProtocolDLMS/COSEM · Plug & Play · Self-register
SecurityAES-GCM-128 encryption + AES-128 Key Wrap
Tamper DetectionMagnet · AC/DC chopping · Connection tampers
Load ControlLatching relay >10,000 cycles · Remote switch
Metering ModesPre-paid & post-paid · TOU up to 8 rates
AMISelf-healing · Remote FW update · Auto-register
Accuracy ClassActive: Class 1 · Reactive: Class 2 (optional)
EnclosureUltrasonic welded · 35kV surge immune · IP54
Dimensions232 mm × 164 mm × 73.5 mm
03

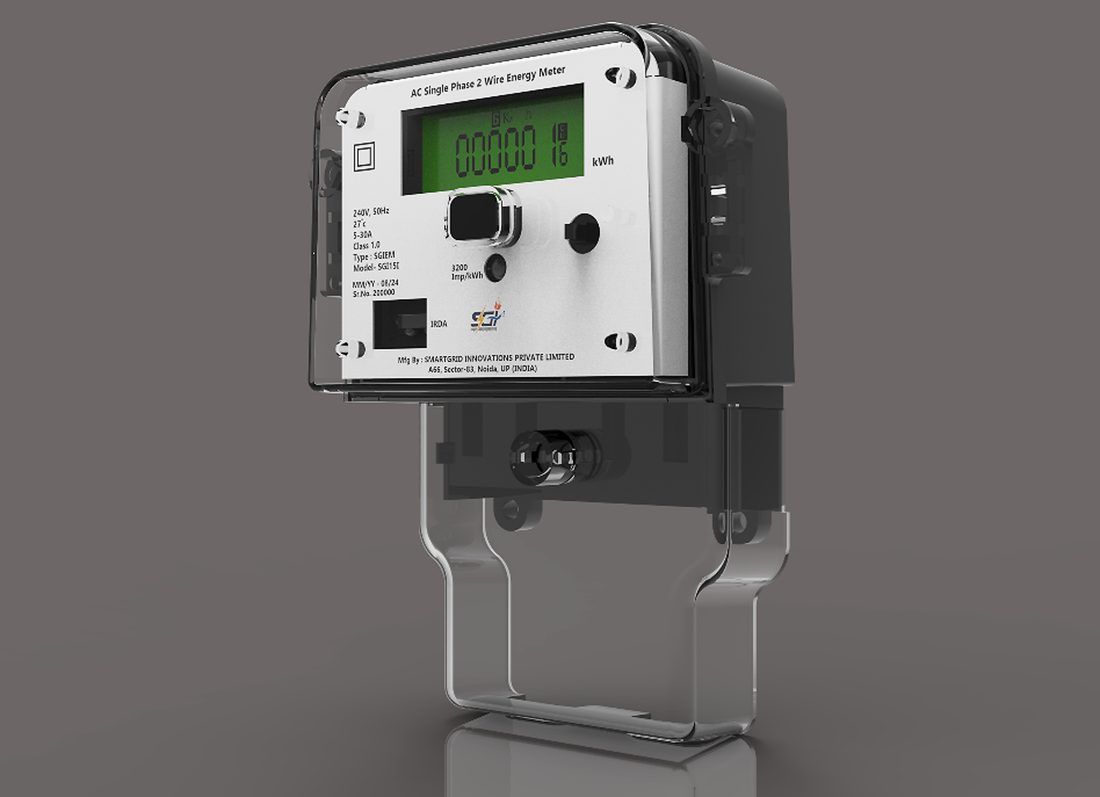

Single Phase Static Energy Meter

IS:13779 (2020)  ·  BIS Certified  ·  IRDA Communication

Single phase static energy meter

Utility-ready static metering — proven, certified and in production. A certified upgrade path to the iMezr smart platform on the same manufacturing line.

StandardIS:13779 (2020) — BIS Certified
Ratings5-30A direct connected
CommunicationIRDA optical interface
BillingMonthly billing — utility ready
Tamper DetectionMagnet · AC/DC chopping · Connection tampers
AccuracyActive: Class 1
Utility TampersUtility-specific tamper detection
EnclosureUltrasonic welded · 35kV surge immune · IP54
Dimensions163 mm × 133 mm × 68 mm
